Data Loading with SegmentedTimeSeries

This tutorial demonstrates the SegmentedTimeSeries data loader for batching and segmentation of time series data.

Basic usage

Create synthetic time series data for demonstration:

tsteps = 0.0:0.1:20.0
data = randn(2, length(tsteps))

2×201 Matrix{Float64}:
 -0.137114  0.989551   1.13567  -0.198518  …  -0.531023  0.733211  -0.95476
4
 -0.495852  0.0554162  2.01327  -0.48494      -1.74048   0.353906  -1.25161

Create a SegmentedTimeSeries dataloader:

segment_length = 20

dataloader = SegmentedTimeSeries((data, tsteps);
                                segment_length)

SegmentedTimeSeries
  Time series length: 201
  Segment length: 20
  Shift: 19 (5.0% overlap)
  Batch size: 1
  Total segments: 10
  Total batches: 10

Key parameters:

• segment_length: Number of time points per segment
• shift: Step size between segments (default: segment_length)
• batchsize: Number of segments per batch

The dataloader accepts tuples of arrays where the last dimension represents time:

other_data = randn(size(data))
shift = 10
dataloader = SegmentedTimeSeries((data, other_data, tsteps);
                                segment_length,
                                shift,
                                batchsize = 2)

for (i, (segment_data, segment_other_data, segment_times)) in enumerate(dataloader)
    i > 3 && break
    println("Segment $i: time range $(segment_times[1]) to $(segment_times[end])")
end

Segment 1: time range 0.0 to 2.9
Segment 2: time range 2.0 to 4.9
Segment 3: time range 4.0 to 6.9

Segmentation strategies

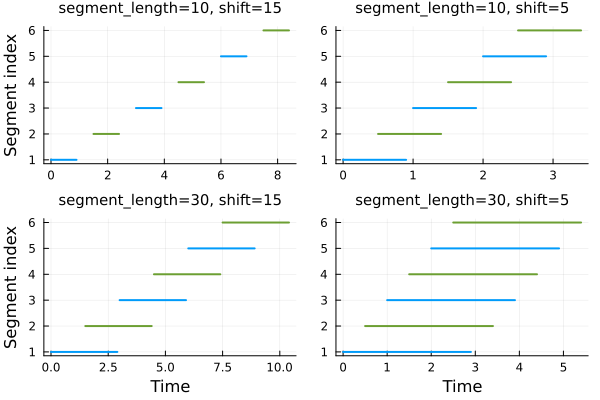

The following visualization shows how segment_length and shift parameters affect data segmentation:

::warning file=examples/data_loading.jmd,line=9::Assignment to `dataloader`
 in soft scope is ambiguous because a global variable by the same name exis
ts: `dataloader` will be treated as a new local. Disambiguate by using `loc
al dataloader` to suppress this warning or `global dataloader` to assign to
 the existing global variable.

Smaller shift values create more overlap between segments, while larger segment_length values capture longer temporal dependencies.

Tokenization

Tokenization enables indexed access to individual segments, useful for associating segments with specific initial conditions or metadata:

tokenized_dataloader = tokenize(dataloader)

# Get available tokens
tokens_list = collect(tokens(tokenized_dataloader))

# Access specific segment
token = tokens_list[1]
segment_data, segment_times = tokenized_dataloader[token]

([-0.13711388338694586 0.9895513871650584 … 0.028118448174196214 -0.5933922
052161277; -0.4958523980666554 0.05541618842409625 … -0.24375184460634863 0
.6878613615863162], [-2.5219542017143195 -0.19568517615429418 … -0.27817073
189554314 -1.5343250700342568; -0.7676760823049353 0.7372251105224449 … 0.7
996416810168662 -0.8719363676295829], [0.0, 0.1, 0.2, 0.3, 0.4, 0.5, 0.6, 0
.7, 0.8, 0.9, 1.0, 1.1, 1.2, 1.3, 1.4, 1.5, 1.6, 1.7, 1.8, 1.9])

Shuffling and partial segments

By default, segments are processed in deterministic order:

for (i, (tok, _)) in enumerate(tokenize(dataloader))
    i > 5 && break
    println("Batch $i contains tokens: ", tok)
end

Batch 1 contains tokens: [1, 2]
Batch 2 contains tokens: [3, 4]
Batch 3 contains tokens: [5, 6]
Batch 4 contains tokens: [7, 8]
Batch 5 contains tokens: [9, 10]

Enable shuffling for randomized training:

rng = Random.MersenneTwister(42)
dataloader_shuffled = SegmentedTimeSeries((data, tsteps);
                                         segment_length,
                                         shift,
                                         shuffle = true,
                                         rng = rng)

for (i, (tok, _)) in enumerate(tokenize(dataloader_shuffled))
    i > 5 && break
    println("Batch $i contains tokens: ", tok)
end

Batch 1 contains tokens: [13]
Batch 2 contains tokens: [3]
Batch 3 contains tokens: [19]
Batch 4 contains tokens: [16]
Batch 5 contains tokens: [12]

Additional options include partial_segment and partial_batch parameters for handling incomplete segments and batches.
